技術內容重點

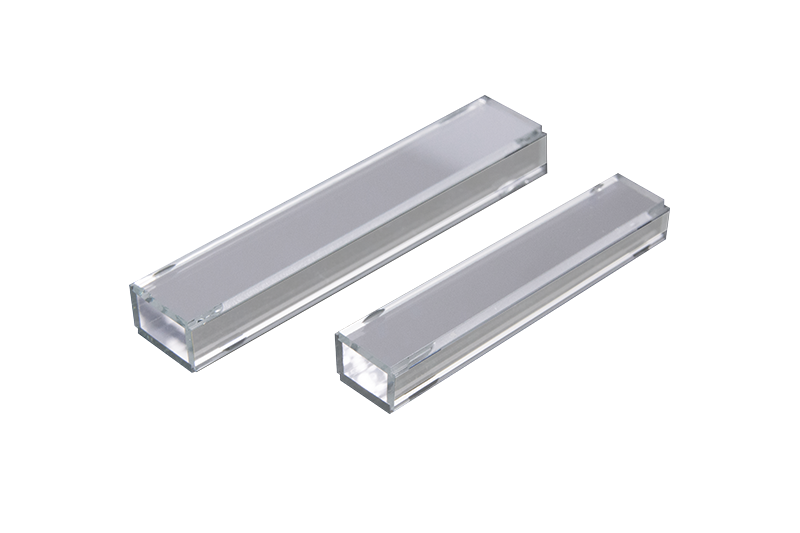

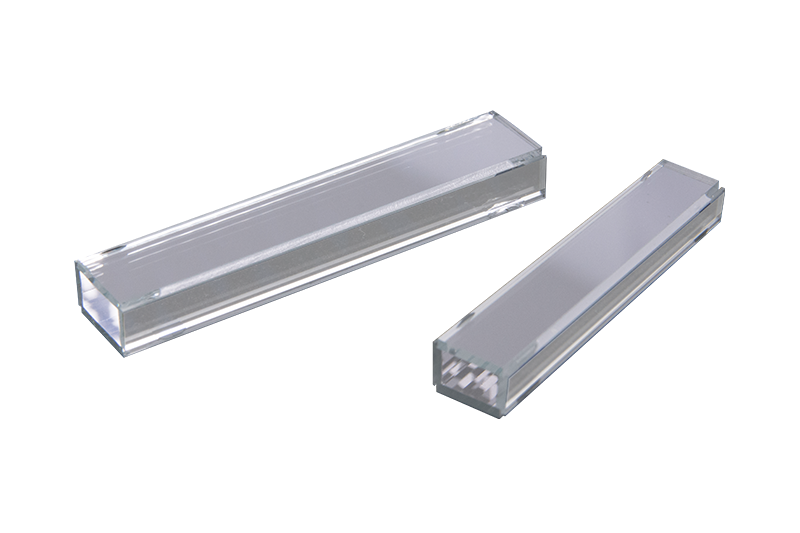

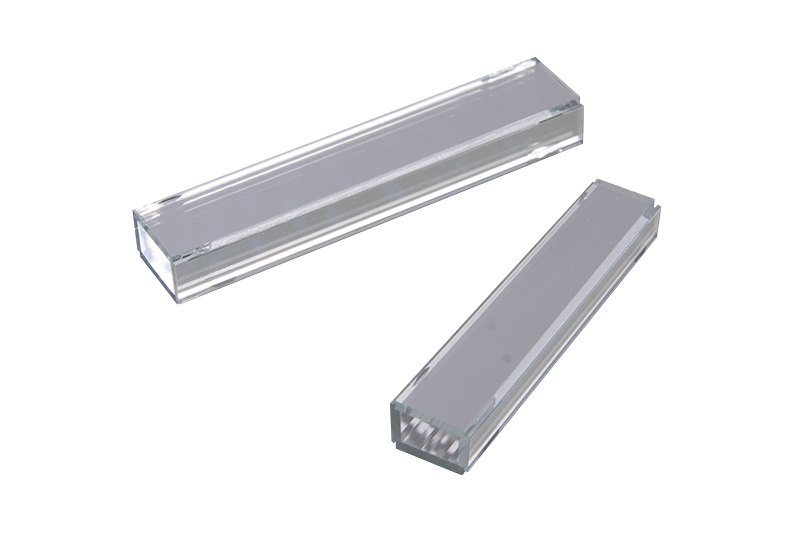

由高反射鏡組成，利用多次內部反射, 將光均勻化。使通過之可見光能均勻且準確地投射出來，避免光機系統於光路上亮度不一的問題。
應用範圍
主要運用於DLP® 投影系統等使用不均勻光源之光機系統。
工藝水準
| 規格類目 | 規格說明 | |||||
|---|---|---|---|---|---|---|
| Shape | Rectangular; Tapered hollow; Wedged | |||||
| Dimension | Customized | |||||
| Precision Assembly Tolerance | +/- 0.07 C9 mm | |||||
| Spectrum | Ag Coating, AOI = 45; Ravg > 98% at 20~680 nm; Rabs > 96% at 440~660 nm; Dielectric Coating, AOI = 75; Ravg > 97% at 20~680 nm; Rabs > 95% at 440~660 nm; Customized | |||||
| Temperature Resistance of Coating Surface | Ag Coating: < 200 °C Dielectric Coating: < 400 °C | |||||
| Remark | * In-house cutting * Advanced step-cutting for enhanced assy. Structure * Jig designed for various customized dimensions | |||||
