optical components play an integral role in optical imaging or projection systems. They directly influence the optical quality, as the light are refracted, diffracted, scaled, homogenized through various optical components, and through the optimized spherical lens design, image aberration are improved upon, along with image resolution and contrast. Young Optics are highly dedicated to optical and projection technology, researching and manufacturing various optical components and optical engines to be applied in different projection and image display products, providing clients with high quality and cost effective solutions to their optical needs.
What We Achieved :
Aspherical lens
| Item | Aspherical lens | |||
|---|---|---|---|---|
| Max. Lens size | φ < 200 mm | φ < 50 mm | φ < 10 mm | φ < 6 mm |
| Form Accuracy | PV < 5.0 µm | PV < 2.0 µm | PV < 0.5 µm | PV < 0.3 µm |
| Decenter | 0.007 mm | 0.005 mm | 0.002 mm | 0.001 mm |
| Cavity | < 1 | < 4 | < 12 | < 16 |
| Roughness | Ra < 5.0 nm | Ra < 5.0 nm | Ra < 5.0 nm | Ra < 5.0 nm |
| Decenter | < 2.0 µm | < 2.0 µm | < 2.0 µm | < 2.1 µm |
| Measurement equipment | UA3P | UA3P | UA3P | UA3P |
| Lead time | 45 days | 45 days | 25 days | 25 days |
| Material | PMMA PC (SP1715) Zeonex E48R Zeonex 480R Zeonex 330R Zeonex K26R Non-ferrous materials EP Series-all type OKP Series APEL Series | |||
DOE lens
| Item | DOE lens |
|---|---|
| Max. Lens size | φ < 30 mm |
| Form Accuracy | PV < 2.0 µm |
| Decenter | - |
| Cavity | |
| Roughness | Ra < 5.0 nm |
| Decenter | < 2.0 µm |
| Measurement equipment | UA3P |
| Lead time | 30 days |
| Material | PMMA PC (SP1715) Zeonex E48R Zeonex 480R Zeonex 330R Zeonex K26R Non-ferrous materials EP Series-all type OKP Series APEL Series |
Fresnel lens
| Item | Fresnel lens |
|---|---|
| Max. Lens size | φ < 70 mm |
| Form Accuracy | PV < 2.0 µm |
| Decenter | - |
| Cavity | |
| Roughness | Ra < 5.0 nm |
| Decenter | NA |
| Measurement equipment | UA3P |
| Lead time | 45 days |
| Material | PMMA PC (SP1715) Zeonex E48R Zeonex 480R Zeonex 330R Zeonex K26R Non-ferrous materials EP Series-all type OKP Series APEL Series |

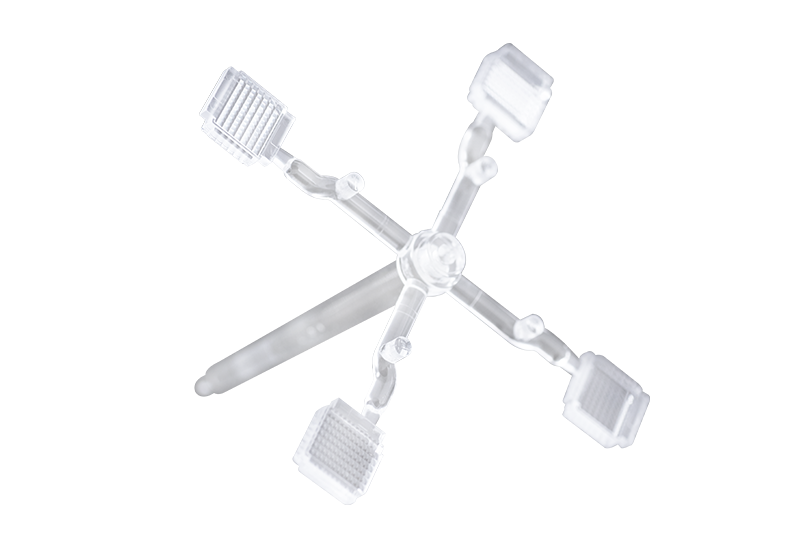

Micro lens array
| Item | Micro lens array |
|---|---|
| Max. Lens size | 30 x 30 mm |
| Form Accuracy | PV < 0.5 µm @ Cell |
| Decenter | - |
| Cavity | |
| Roughness | Ra < 5.0 nm |
| Decenter | NA |
| Measurement equipment | UA3P |
| Lead time | 30 days |
| Material | PMMA PC (SP1715) Zeonex E48R Zeonex 480R Zeonex 330R Zeonex K26R Non-ferrous materials EP Series-all type OKP Series APEL Series |

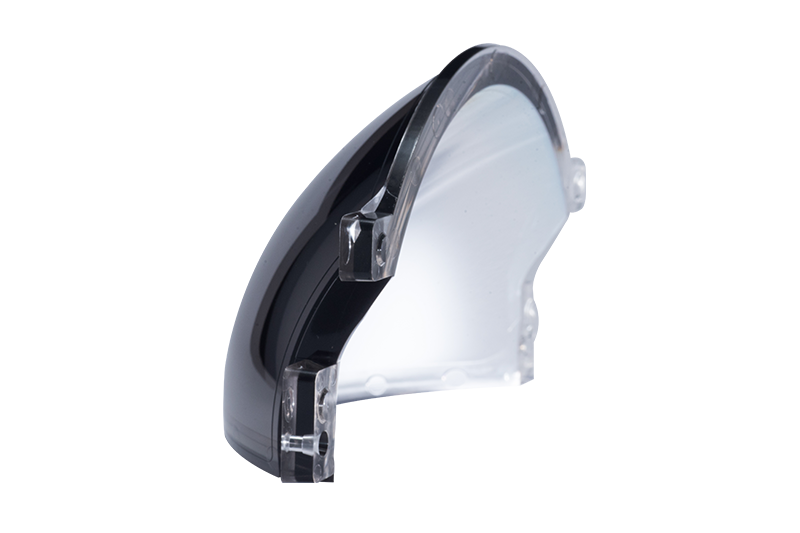

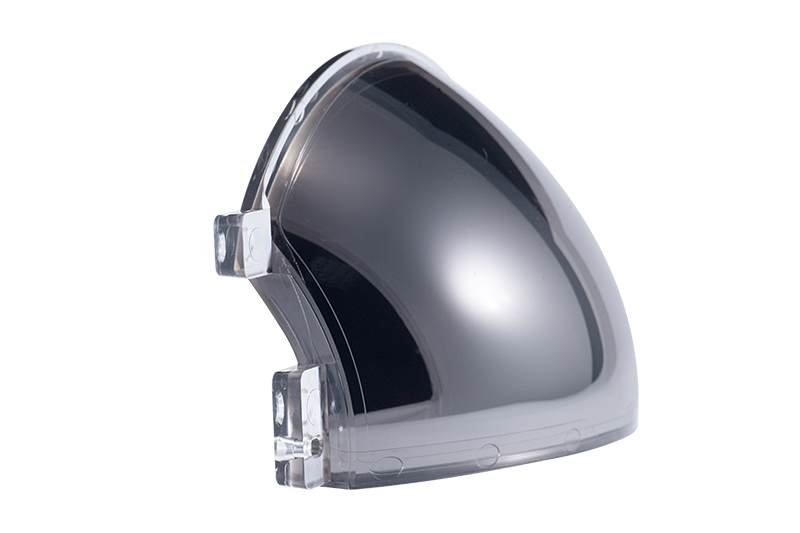

Freeform lens
| Item | Freeform lens |
|---|---|
| Max. Lens size | 300 x 150 mm |
| Form Accuracy | PV < 5.0 µm |
| Decenter | - |
| Cavity | |
| Roughness | Ra < 5.0 nm |
| Decenter | NA |
| Measurement equipment | ATOS/CMM |
| Lead time | 45 days |
| Material | PMMA PC (SP1715) Zeonex E48R Zeonex 480R Zeonex 330R Zeonex K26R Non-ferrous materials EP Series-all type OKP Series APEL Series |
Delivery Lead time：
1). Case 1: 2 weeks (Use YOI stock plastic sheet)
2). Case 2: 6 ~ 8 weeks (Need to buy plastic sheet)

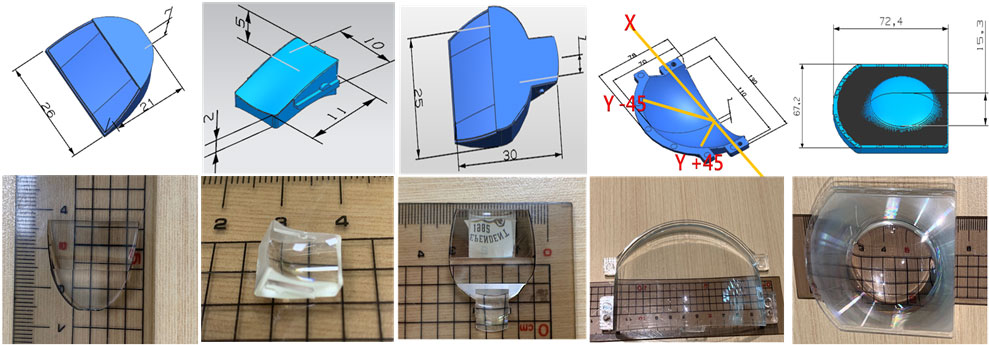

Freeform lens
